pwmset: Set PWM Duty-Cycle

The pwmset application can be used to change the duty cycle of a PWM output. The value of the duty cycle has a width of 10 bits, i.e. the minimum value is 0 and the maximum value is 1023. The application can be used to set the value in different ways. On the one hand, the output can be set to a specific value. On the other hand, the user can change the duty cycle interactively. Another option is to generate simple signals at the output.

Note

The PWM channel must first be enabled via systemset. The period or frequency of the PWM signal can also be set applying this command. This value is identical for all PWM outputs.

Synopsis

Usage: ./pwmset [options] channel
Client app connecting to ‘Black-Box’ device for test purposes.
Options:
-h, --help

Displays help on commandline options.

--help-all

Displays help, including generic Qt options.

-v, --version

Displays version information.

-a, --address <host>

Host address of the gateway [localhost].

-p, --port <port>

Port of the gateway [51955].

-s, --severity <level>

Max severity (fatal|error|warning|info|debug|verbose) of log message.

-f, --frequency <period>

Frequency (period) of sending in ms [1000]

--debug

Report additional debug info in log.

--value <value>

(Max) value to be set.

--min <value>

Minimum value to be set.

--step <number>

Number of intermediate steps.

--signal <algorithm>

Signal to be generated (linear|scurve).

--stepdown

Stepdown the signal before repetition.

Arguments:

channel identifier of the pwm channel.

Examples

Interactive Mode

In the simplest case, the application starts in interactive mode when it is called using ./pwmset -a blackbox1 -s info 0. The duty cycle of PWM channel 0 is changed according to the user input.

Single Mode

The call ./pwmset -a blackbox1 -f 0 --value 0 -s info 0 sets the duty cycle to the constant value (in this case 0) and the application exits.

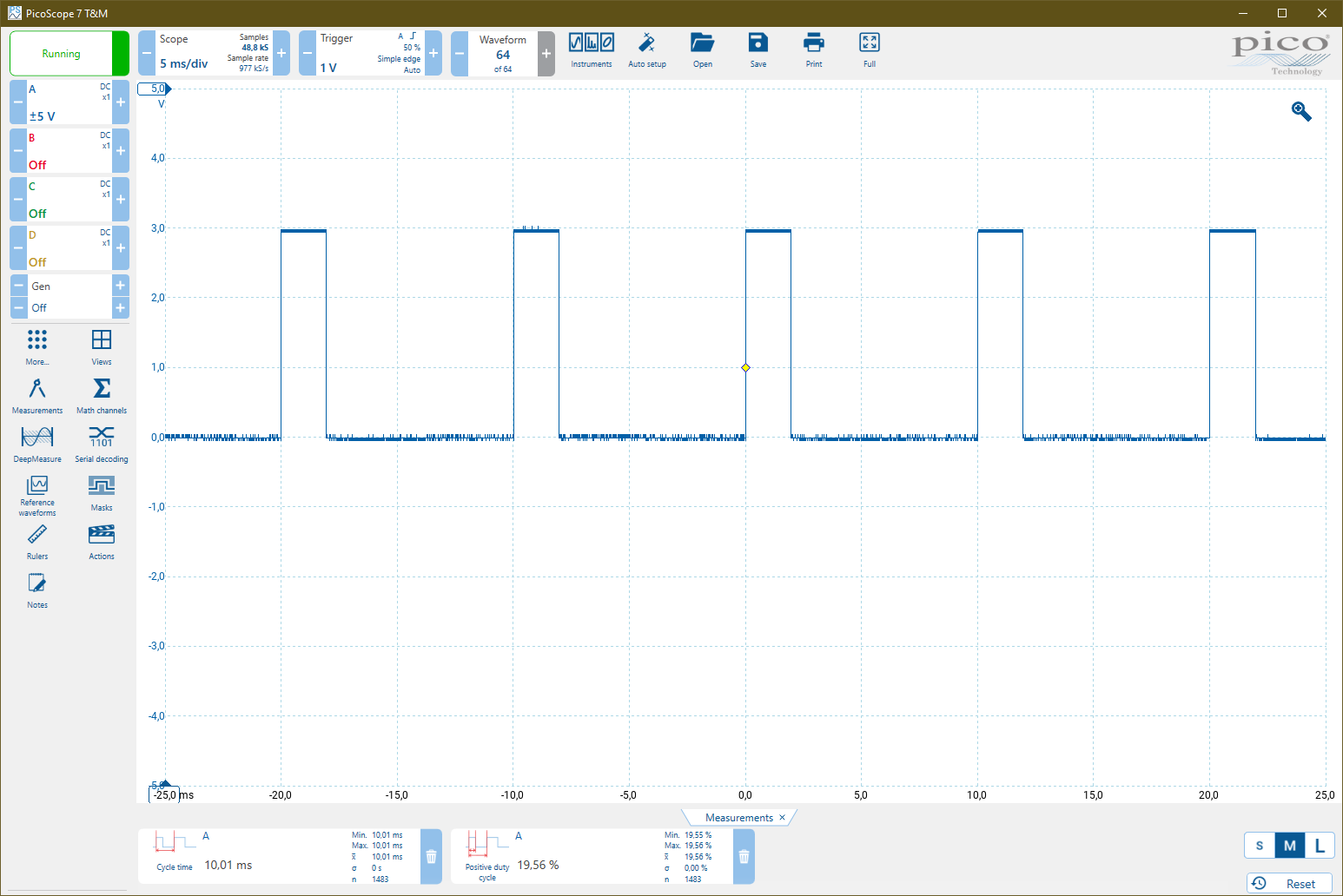

../_images/pwm_10Hz_200.png

This example uses --value 200 to set the duty cycle to 200/1023 == 19.55%.

User-Defined Sequence

By specifying the parameter --value several times, the duty cycle is changed according to the specified frequency. This allows a simple sequence of different duty cycle values to be generated. In this example ./pwmset -a blackbox1 -f 500 --value 100 --value 500 --value 1000 -s info 0, a duty cycle of 100, 500 and 1000 is changed one after the other at intervals of half a second (according to -f 500). The sequence then starts again.

If the parameter --stepdown is also specified, the intermediate steps (i.e. the values between the first and last parameters) are repeated in reverse order before the sequence starts again from the beginning.

Signal Generator

It is possible to generate a sequence of duty cycle values automatically. By specifying the parameter --signal, you can choose between two generated signals, linear or scurve. An ascending sequence of values is generated, starting from the minimum (can be changed using --min) to the maximum value (can be changed using -value). The number of intermediate steps is specified by the parameter --step.

The used sigmoid function (S-like shape scurve) to generate the signal is based on \(f(t) = \frac{1}{1+e^{-t}}\).

Using ./pwmset -a blackbox1 -f 250 -s info --value 1000 --signal scurve --step 10 --stepdown 0 changes the duty cycle of the channel 0 from 0 to 1000 with 10 intermediate steps corresponding to a sigmoid function with a period of 250 milliseconds. The intermediate steps are then run through in reverse order before the entire sequence starts again.

2024-05-10 11:01:25.446 NONE  Press Ctrl-C to abort application.
2024-05-10 11:01:25.446 INFO  Set PWM channel #0
2024-05-10 11:01:25.446 INFO  Try to connect to blackbox1@51955...
2024-05-10 11:01:25.446 INFO  Generate s-curve signal [0..1000] steps: 10
2024-05-10 11:01:25.446 INFO  Step-down the signal, in total 22 steps.
2024-05-10 11:01:25.446 INFO  The values are: 0, 36, 72, 139, 251, 410, 589, 748, 860, 927
2024-05-10 11:01:25.446 INFO  963, 1000, 963, 927, 860, 748, 589, 410, 251, 139
2024-05-10 11:01:25.446 INFO  72, 36.
2024-05-10 11:01:25.468 INFO  Client is connected...
2024-05-10 11:01:25.472 INFO  Session identifier 7, protocol version 0

Using the parameter --signal linear instead results in different distribution of the values.

2024-05-10 11:10:49.612 NONE  Press Ctrl-C to abort application.
2024-05-10 11:10:49.613 INFO  Set PWM channel #0
2024-05-10 11:10:49.613 INFO  Try to connect to blackbox1@51955...
2024-05-10 11:10:49.613 INFO  Generate linear signal [0..1000] steps: 10
2024-05-10 11:10:49.613 INFO  Step-down the signal, in total 22 steps.
2024-05-10 11:10:49.613 INFO  The values are: 0, 90, 181, 272, 363, 454, 545, 636, 727, 818
2024-05-10 11:10:49.613 INFO  909, 1000, 909, 818, 727, 636, 545, 454, 363, 272
2024-05-10 11:10:49.613 INFO  181, 90.
2024-05-10 11:10:49.715 INFO  Session identifier 11, protocol version 0
